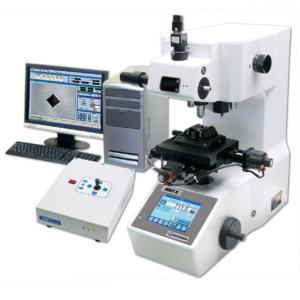

Automatic and semi-automatic Hardness Testing System

Flexible Auto-focus and Auto-reading function

These functions set four kinds of detailed set values of an automatic focus and reading beforehand; those calls those set values easily on software
(For AMT/AVT and PMT/PVT)

Customize

Matsuzawa have a In-house production of software for corresponding to various user-needs.
We will respond fast and flexible customisation.
And, a special treatment device and a special stage also do the design production from one goods.
First of all, please contact us.

Auto trace function

After completing the measurements, this function can promptly follow up the work and once again measure images (if needed) on the data edit screen

(For AMT/AVT-PS, FS)

Specifications and additional options:

New Data Entry block

• Color LCD Touch Panel
• Tourelles with two built-in indenteramis, four lenses
• Wide range of loads:
• HV 0.001; HV 0.003; HV 0.005; HV 0.01; HV 0.025; HV 0.05; HV 0.1; HV 0.2; HV 0.3; HV 0.5; HV 1; HV 2;
• LED Lighting
• Automatic selection of Indenterov and lenses
• Flexible autofocus system and automatic print capture
• Flexible fingerprint reading system
• Pattern Edge Automatic recognition feature

PS Series
The automatic reading system with a table.
You can set up different measurement methods.

FS Series
Automatic reading system with a table and autofocus.
Move-Case-AF-Auto Read
Automatically.

EX Series
Automatic Vickers system with large desk
By order of customers, we’ve created a sample form recognizer, a polished pattern,
A sample device and a fully automated system. Contact our company in
Any time.
The system automatically provides a pattern that cleanings it, determines the firmness. The system also assesses
Results and selects the pressure point on the sample.
